Ethernet Surge Protection Application

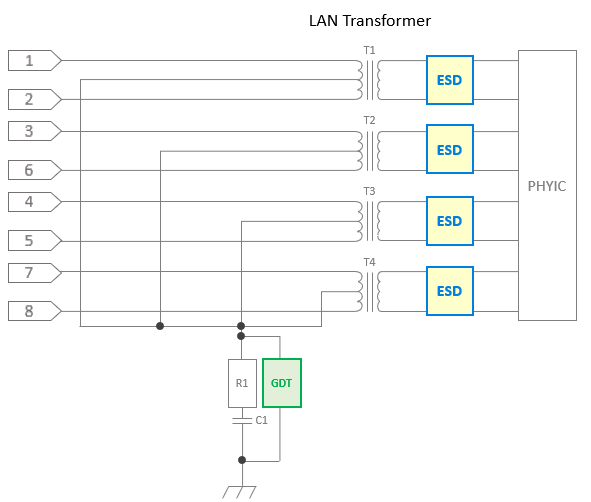

RJ45 Protection Application

ESD Recommended P/N :

DFN2010 : DCENC3V310BUCT

Test Level : ESD contact ±20kV air ±20kV

SOD323 : DCEWS3V326BLSCT

Test Level : ESD contact ±30kV air ±30kV

LAN Transformer Recommended P/N :

1G : Q2401AG

2.5/5G : Q2450AG

10G : Q2410AG

GDT Recommended P/N :

DC2R-B series (8/20us ,0.5KA)

DC2R-C series (8/20us ,2KA)

DC2R-D series (8/20us ,3KA)
